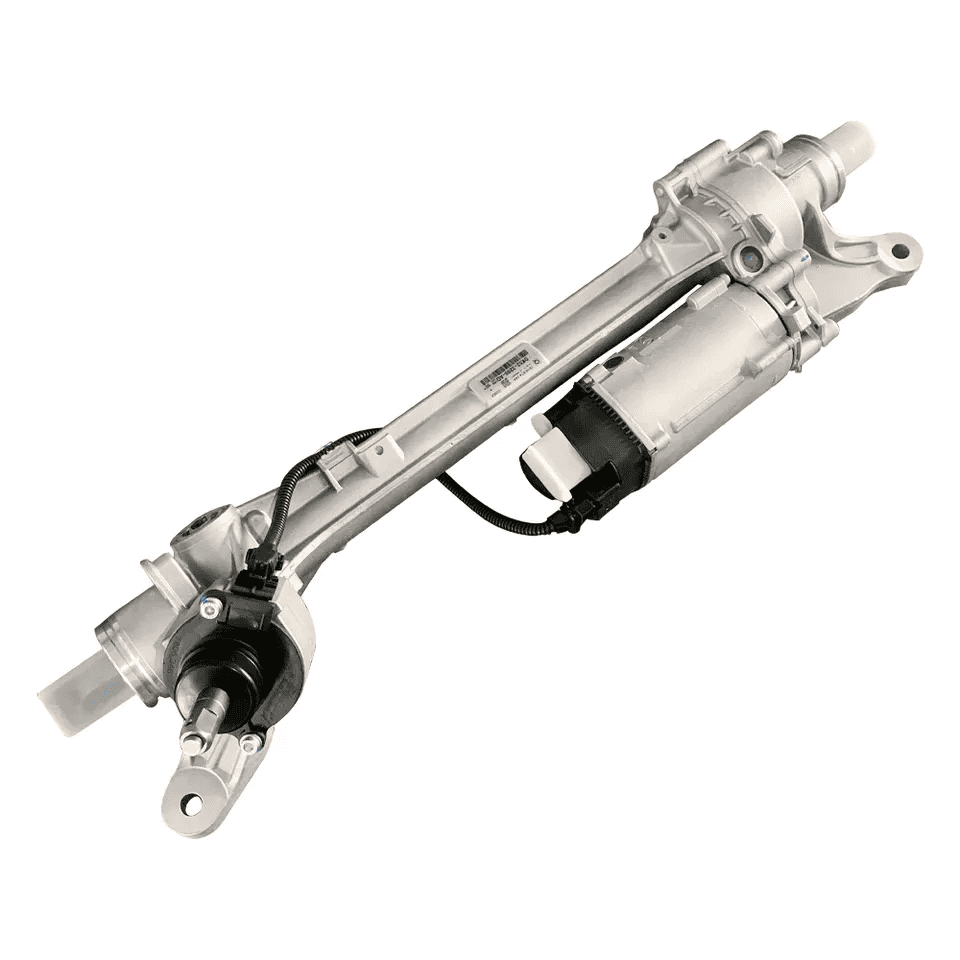

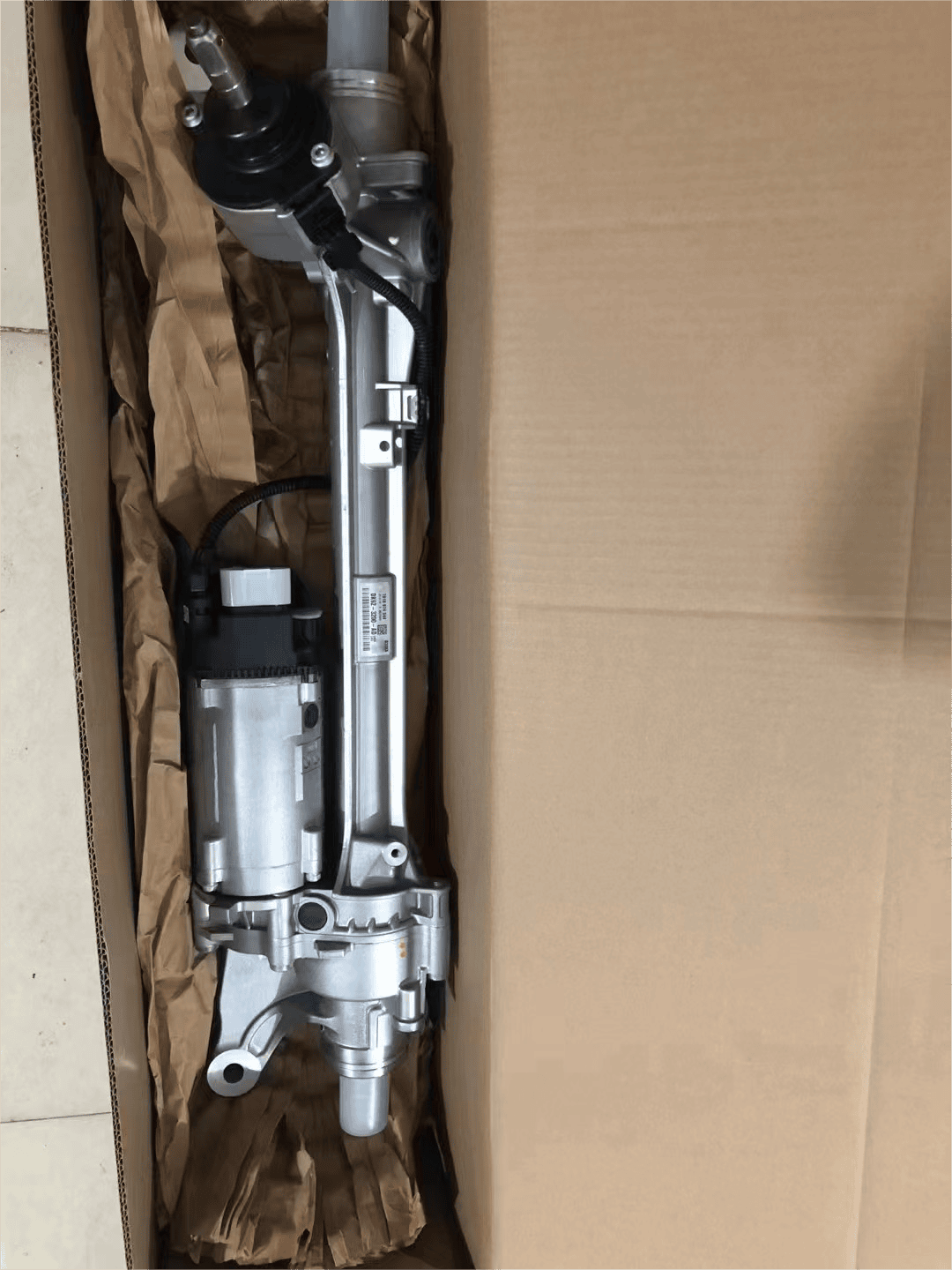

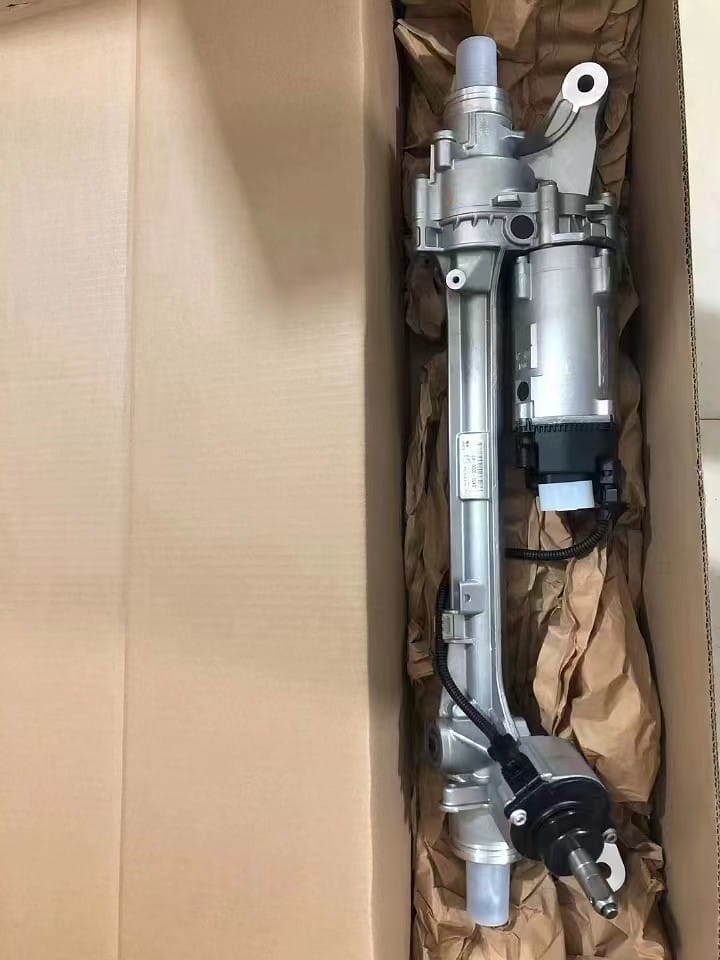

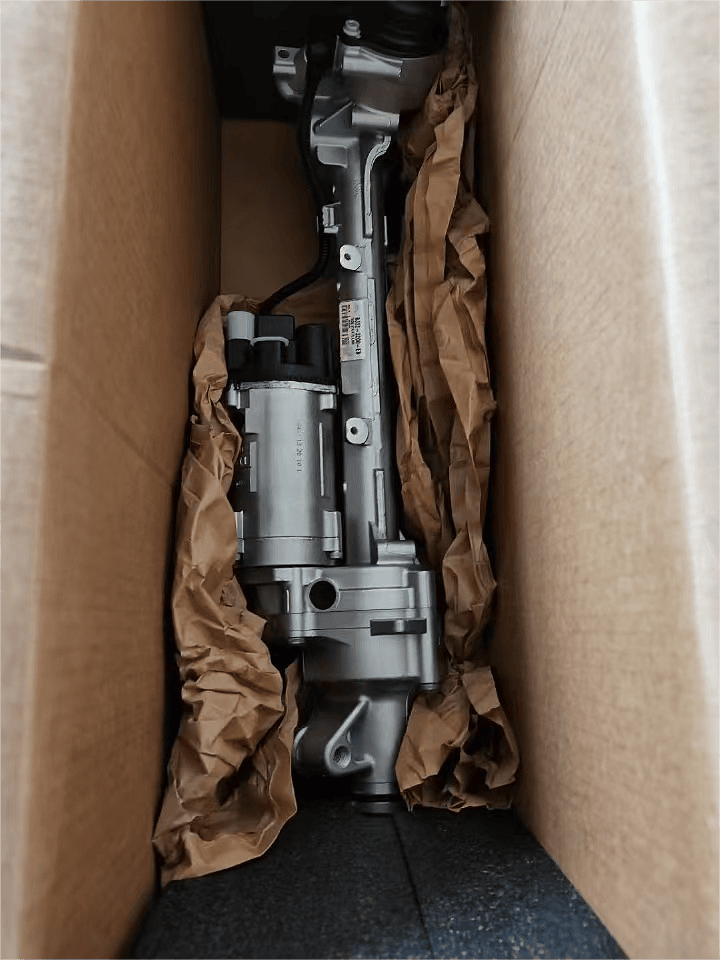

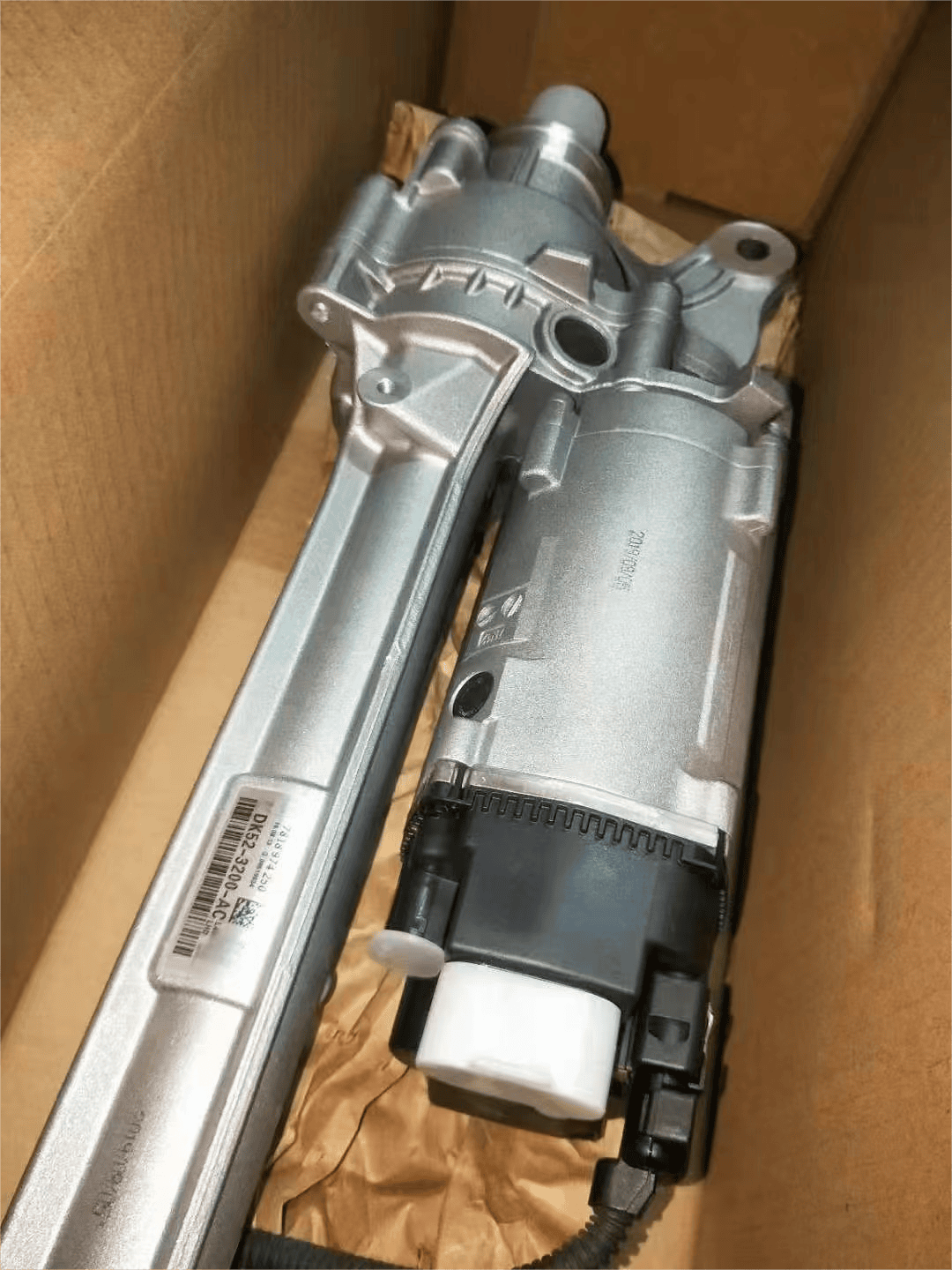

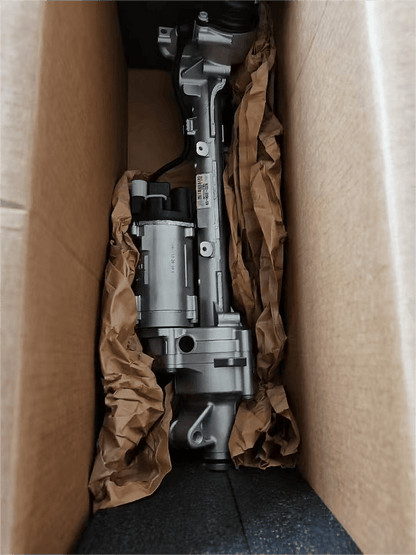

LHD Electric Power Steering Rack and Pinion for Range Rover IV (L405) 13-15 OE# LR092481 DK52-3200-AD
LHD Electric Power Steering Rack and Pinion for Range Rover IV (L405) 13-15 OE# LR092481 DK52-3200-AD
Couldn't load pickup availability
Low stock: 10 left
Electric Power Steering Rack for Range Rover Vogue L405 2013-2015 (OE# LR092481 / LR058396 / LR143415)
This premium remanufactured electric power steering rack and pinion assembly is built to exact OEM specifications, offering a direct-fit replacement for JLR OE LR092481 on the Range Rover Vogue L405. 100% load-bench tested to ensure factory performance. No core charge required.
| Parameter | Specification |
|---|---|
| Primary OE Part Number | LR092481 |
| Driving Position | Left-Hand Drive (LHD) Only |
| Steering System Type | Electric Power Steering (EPS) — Steering Gearbox |
| Chassis Platform | Jaguar Land Rover (JLR) L405 Platform (4WD Only) |
• Fits Range Rover Vogue / Autobiography (L405 Platform) Series Only. Will NOT fit Range Rover Sport L494 models.
• Online JLR Pathfinder/SDD Programming & Calibration are strictly required immediately after physical fitting.
• Please match the hardware generation or cross-verify your 17-digit VIN before ordering.
Product Condition & Quality Assurance
Remanufactured (Premium Rebuilt) — Effectively eliminates steering fluid leakage, heavy steering wheel resistance, dangerous physical jamming, and intermittent EPS/DSC warning lights. Rebuilt using upgraded high-strength waterproof internal seals and advanced synthetic extreme-pressure rack grease. It addresses internal damp ingress, operational torque sensor centering drift, and EPS ECU module errors common to early JLR L405 chassis luxury flagship SUV lines.
OE Part Number Reference & Compatibility Dictionary
👉 Please cross-verify your original OEM stamping or provide your VIN before final checkout.
Official JLR Genuine Cataloged Numbers:
• Primary Targeted OE: LR092481
• Direct Official Substitutes: LR058396, LR143415, LR056316, LR046039
Physical Label Stamped/Casing Engineering Numbers:
• DK52 Series: DK52-3200-AA, DK52-3200-AB, DK52-3200-AC, DK52-3200-AD, DK52-3200-CA, DK52-3200-CB, DK52-3504-AA, DK52-3504-AB, DK52-3504-AC
• FK52 Series: FK52-3200-AA
Vehicle Fitment Guide
Please cross-reference your vehicle model, year, and engine specification below (Left-Hand Drive & 4WD Configurations Only):
Fitment Summary: This electric power steering gear fits 2013-2015 Range Rover L405 4WD LHD, compatible with standard wheelbase (SWB) and long wheelbase (LWB) platforms.
| Model Line | Engine Specs & Code | Compatible Application Details (Year & Trim) |
|---|---|---|
| Range Rover Vogue (L405 Platform) 4WD LHD Only |
3.0T V6 Petrol (306PS) | • 2014: Base / HSE / Vogue SE (3.0L Supercharged Gasoline / 8-Speed AT) • 2014: Luxury LWB (Long-Wheelbase Platform Models) |
| 3.0T V6 Diesel (306DT) | • 2013: TDV6 / SDV6 (3.0L Twin-Turbo Diesel / 8-Speed AT) • 2015: HSE LWB Hybrid / Autobiography LWB Hybrid (Diesel-Electric) |
|
| 5.0T V8 Petrol (508PS) | • 2013: Supercharged V8 / Autobiography (5.0L High-Output / 8-Speed AT) • 2014: Autobiography LWB / SV Autobiography LWB (5.0L Supercharged) |
Core Product Features
⚙️ Heavy-Duty Structural Overhaul: Engineered specifically to handle brutal heavy luxury SUV front-axle loading impacts. Upgraded with premium-grade fluid waterproof internal seals and advanced synthetic extreme-pressure rack grease.
📊 100% Load-Bench Validation: Prior to final storage, every assembly is run through an advanced digital simulation test including complete operational torque sensor feedback and no-load current curve metrics.
🛡️ Premium Commercial Value: Save up to 70% compared to luxury local dealership catalog list pricing. Fully backed by our premium 24-month replacement warranty. Plug in, code, and drive.
Frequently Asked Questions
Q: My original steering core is stamped with a DK52-3200 number. Will this item fit?
A: Yes, absolutely. Engineering casing numbers such as DK52-3200-AB or DK52-3200-CB are earlier production codes that officially cross-reference and interchange with this premium rebuilt assembly. It is a direct mechanical match for LR092481.
Q: Will this fit Range Rover Sport L494 models?
A: No. This unit is engineered strictly for the standard flagship Range Rover Vogue L405 platform chassis. It cannot be cross-installed onto an L494 Sport line due to differing steering geometry and physical mounting points.
Q: Are post-installation coding and adaptive learning strictly required?
A: Yes. Immediately after physical installation, your repair shop must execute an online JLR Pathfinder or SDD software diagnostic session to flash the correct adaptive configuration dataset and complete steering angle calibration to clear dashboard EPS/DSC codes.
